ImagingRing
Challenging the limits of medical imaging

Redefining what’s possible in mobile imaging, the ImagingRing combines cutting-edge 2D and 3D capabilities with seamless integration into surgical and radiotherapy workflows. Compact, versatile, and built for precision, it empowers clinicians to enhance patient outcomes without compromising efficiency.

Simplify workflows with robotic precision

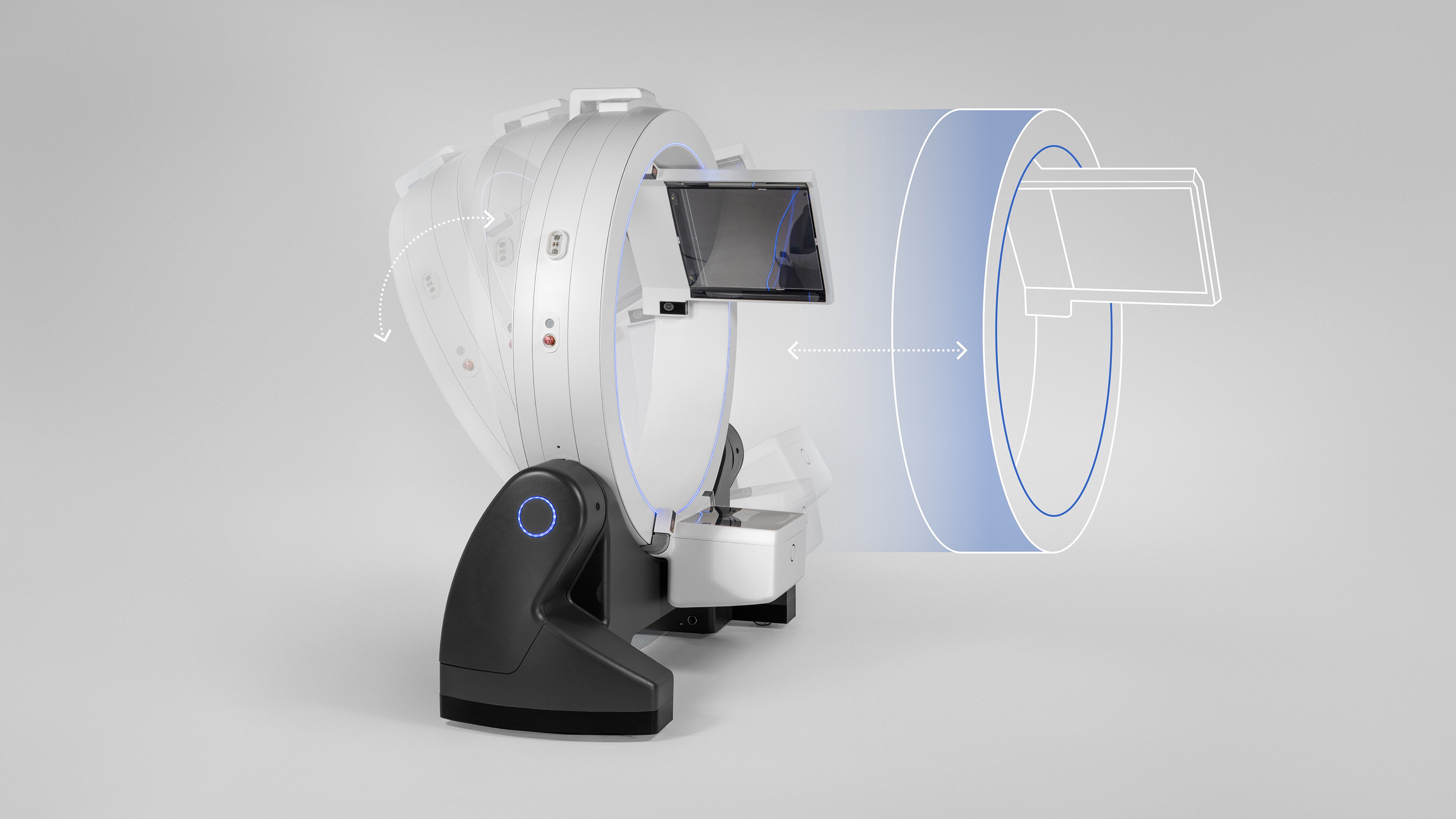

Automate imaging processes and reposition effortlessly with robotic movement—perfect for parking, scanning, or retaking images at exactly the same spot.

Maximize flexibility with compact design

Adapt to any scenario with a small footprint, ultra-large gantry opening, and full-body imaging capability. Provide patient comfort while minimizing dose using collimated fields for focused scans.

Enhance accuracy with advanced technology

Achieve exceptional imaging quality with independent moving source and detector for non-isocentric imaging, on-board computer vision for system positioning, and wireless remote control for ease of use.

“The imagingRing represents our commitment to precision and innovation in CBCT imaging. Its flexibility and real-time imaging capabilities empower clinicians to treat with greater confidence and accuracy.”

Auke Meppelink, Managing Director, Medphoton

See the ImagingRing in action

Discover how the ImagingRing transforms workflows with precision and efficiency—contact us for a personalized demonstration today.

Wireless remote control:
Effortless operation

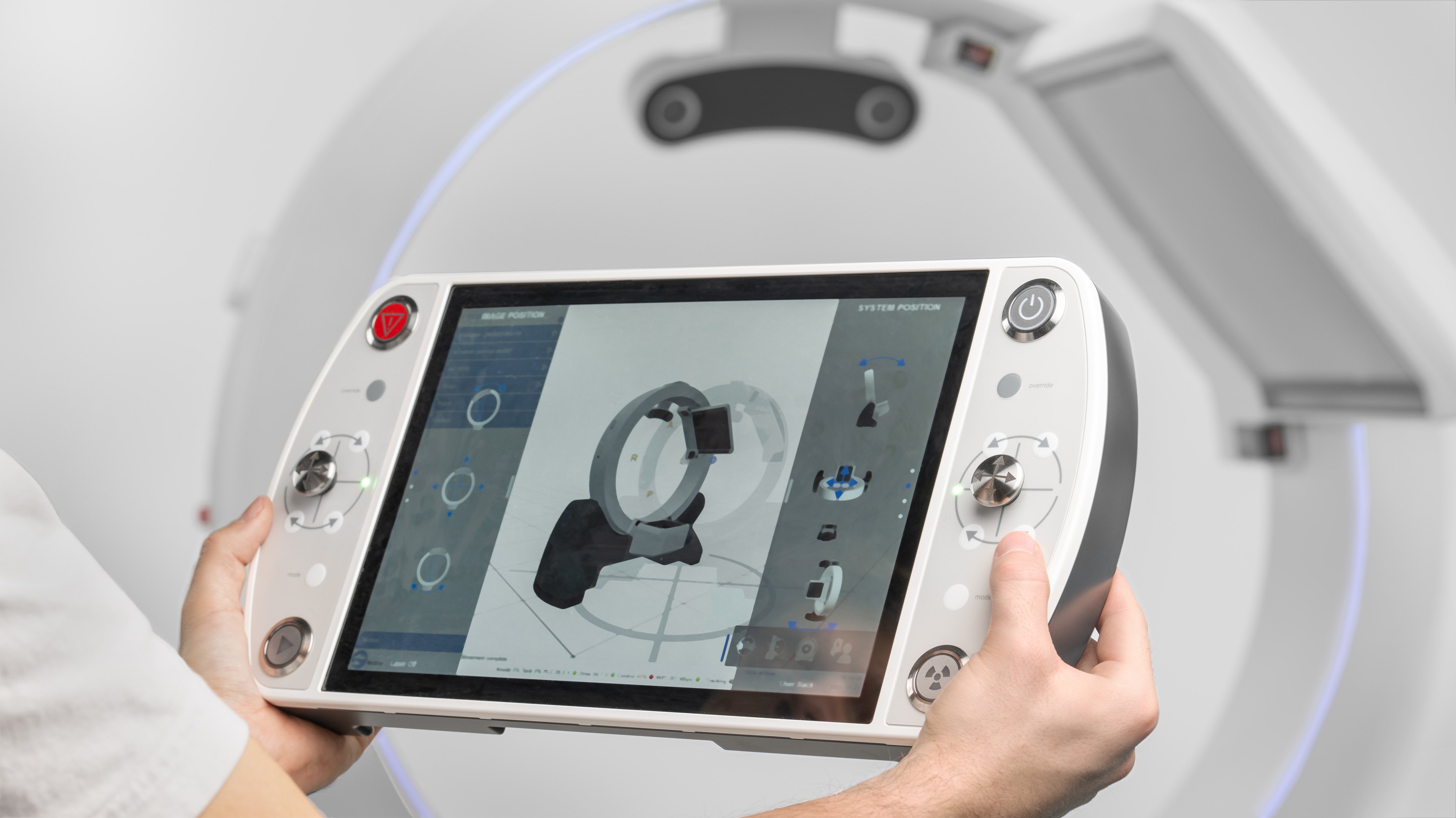

Easily manage imaging workflows with a wireless control console, designed for ease of movement and operation in any clinical environment. This remote empowers seamless adjustments, whether you’re scanning, repositioning, or parking the system.

Integrated laser guidance:
Precision you can see

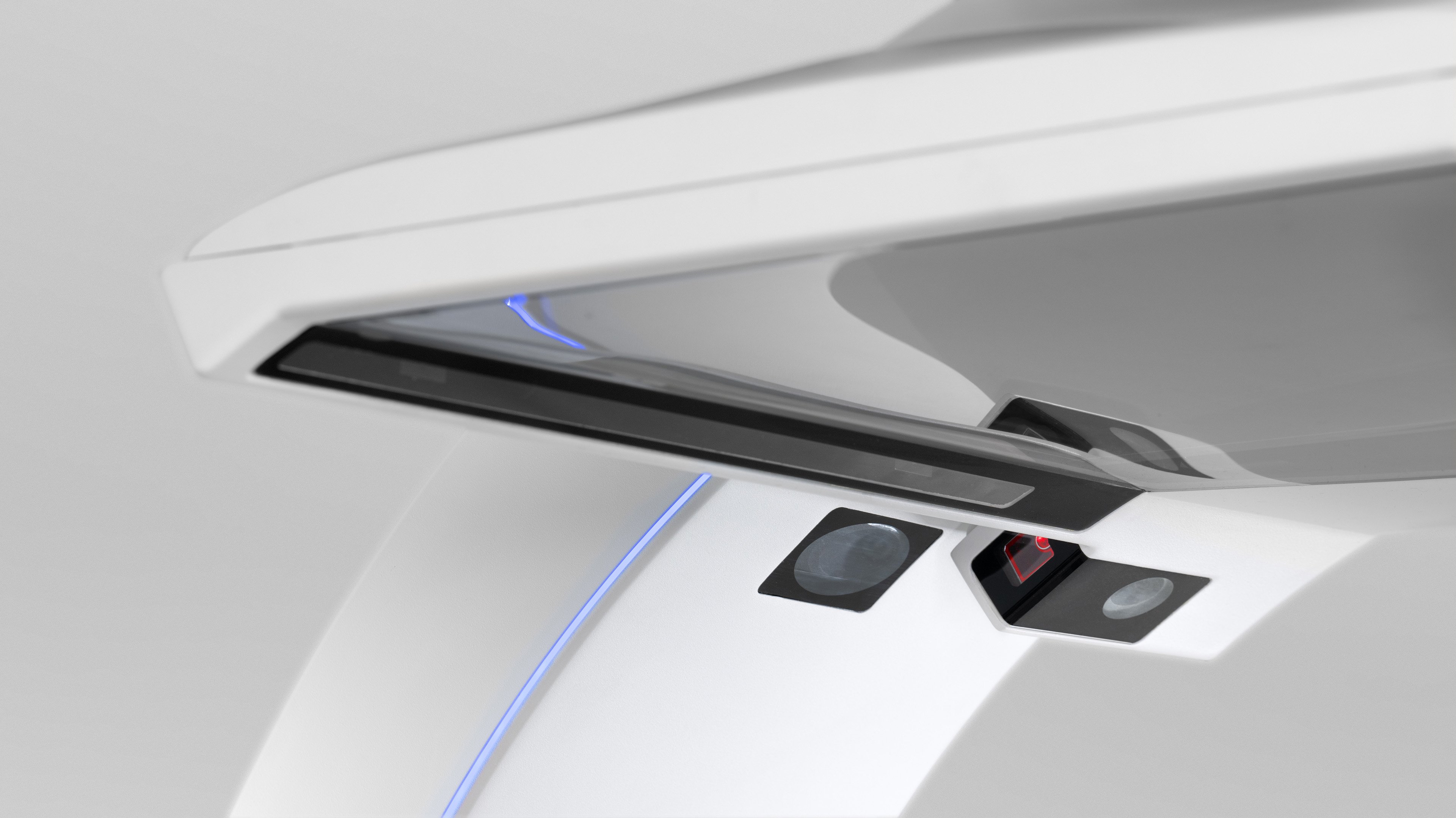

Visualize scan ranges and incision points with pinpoint accuracy. Integrated laser visualization ensures precise planning, helping clinicians map out procedures confidently and accurately.

Non-Isocentric Imaging:
Flexibility for complex anatomy

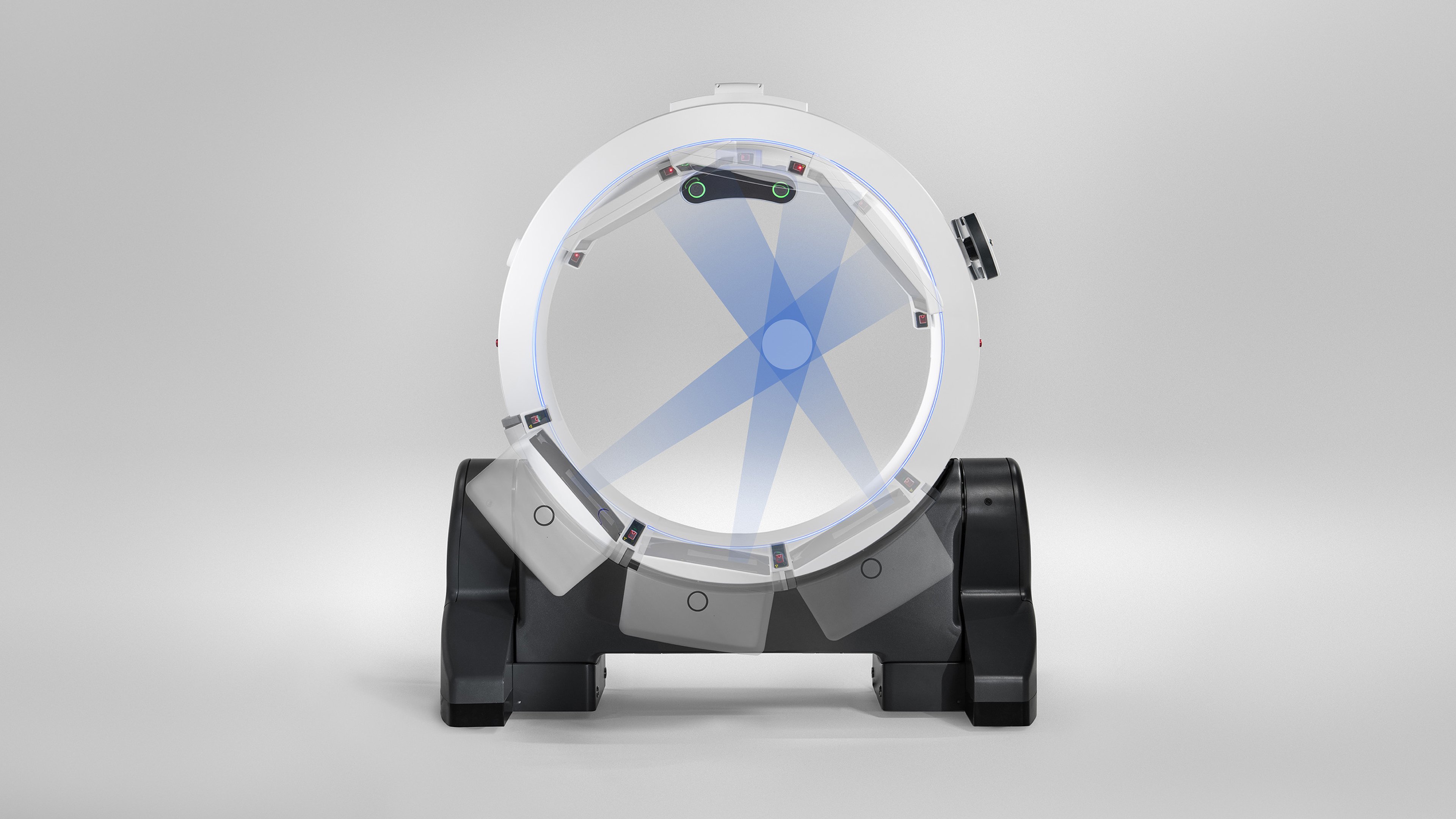

Adapt to unique clinical demands with independent source and detector movement. This feature allows imaging of challenging areas like shoulders and hips, or the creation of larger fields of view—all while accommodating patient-specific positioning needs.

Flexible patient setup:
Designed for accessibility

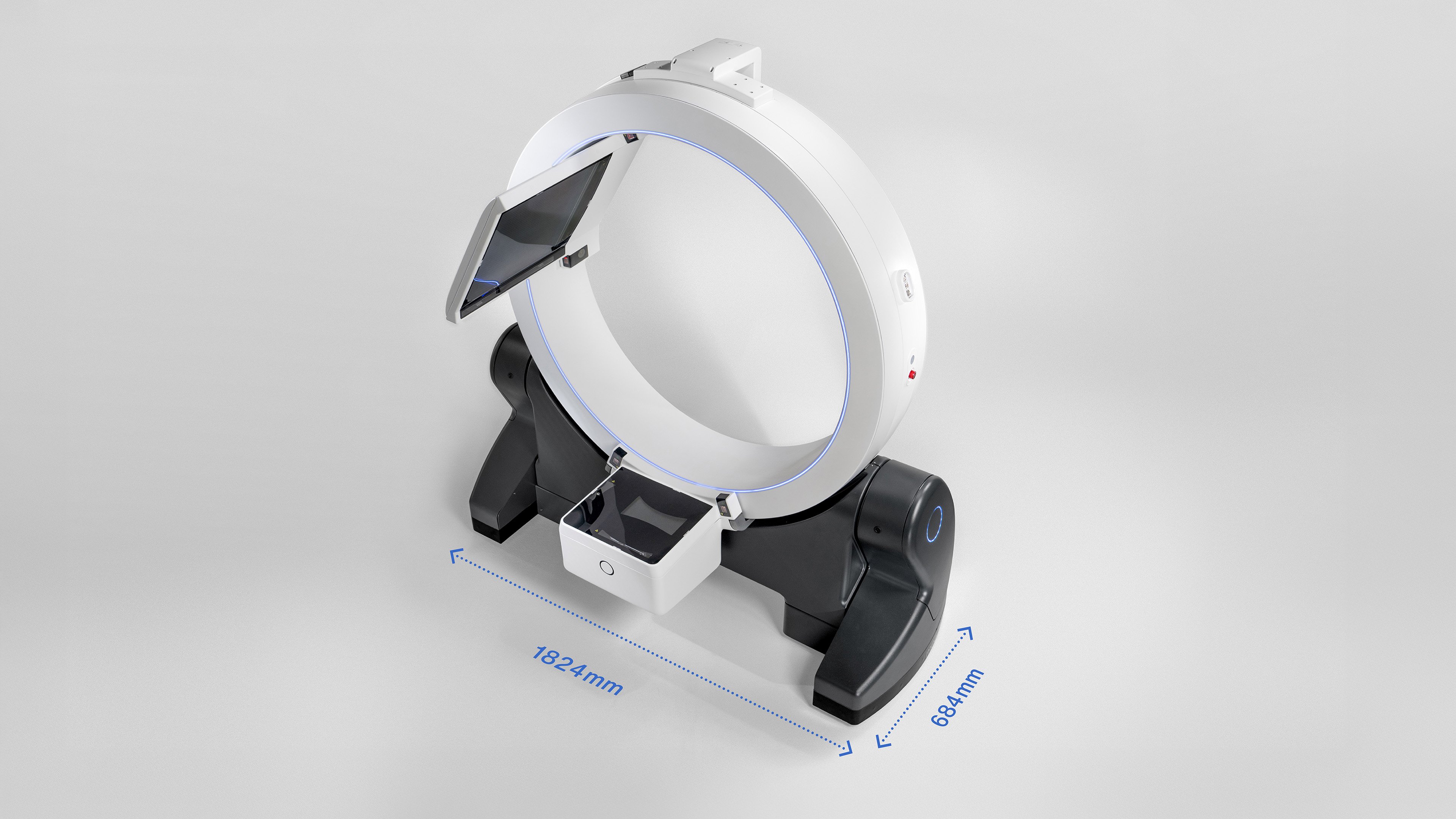

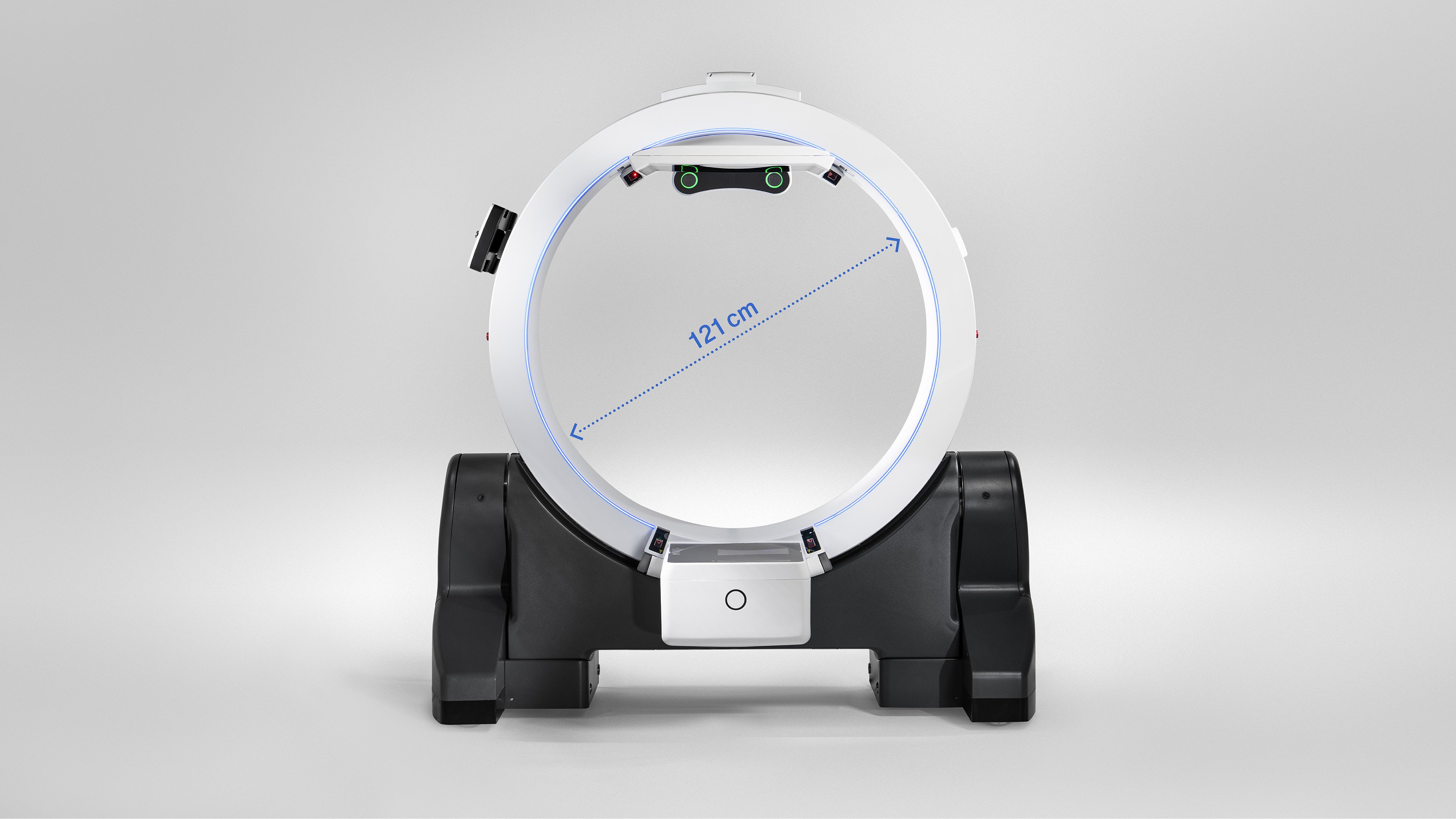

Ensure seamless patient positioning with a compact design and ultra-large 121 cm gantry bore. The ImagingRing provides ample space for easy patient access, even in tight clinical settings, while accommodating diverse imaging needs for both full-body and targeted scans.

Dose optimization:
Prioritize patient safety

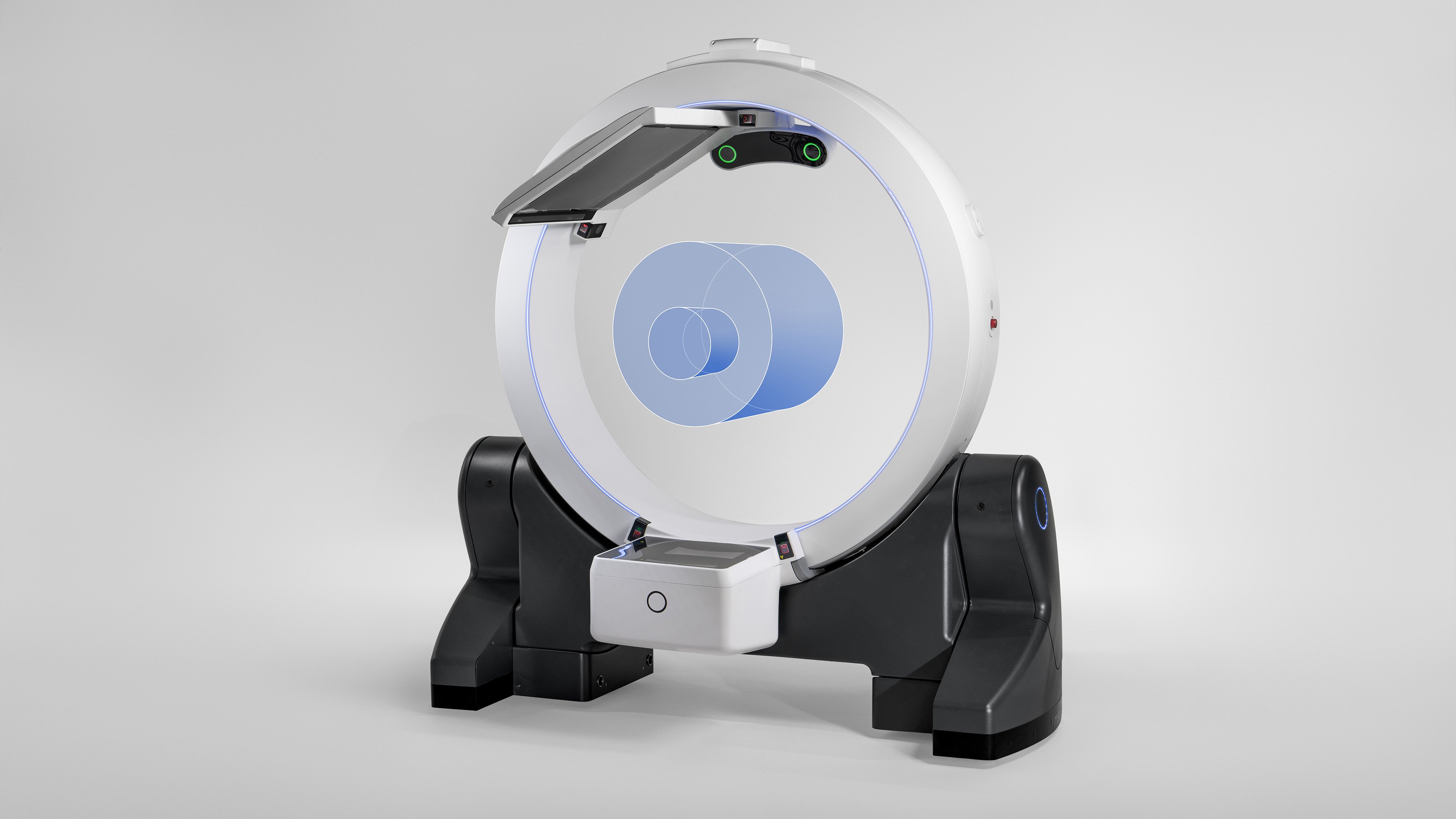

Reduce radiation exposure without compromising image quality. Customizable field collimation tailors scans to your specific needs, ensuring patient safety while delivering clear, detailed results.

Engineered for precision and performance

Designed with cutting-edge technology, the ImagingRing provides robust functionality and exceptional imaging quality, meeting the demands of modern clinical workflows.

Weight: 520 kg
Gantry Bore Clearance: 121 cm
Detector Size: 43 x 43 cm
Energy Range: 60–140 kVp
Resolution: Up to 3.4 LP/mm
Rotation Speed: Up to 16 degrees per second and up to 7 degrees per second for detector arm

Have specific questions?

Contact our team for detailed insights.

Optimized for a range of clinical applications

The ImagingRing is designed to support diverse clinical needs, from intraoperative imaging to advanced radiotherapy planning. Its adaptability and precision make it an invaluable tool across multiple disciplines, empowering clinicians to deliver the best possible care.

Proton therapy

Designed for precision, the ImagingRing offers exceptional 3D imaging and quick 2D verification shots to streamline proton therapy workflows. Motorized movement from parking to scanning ensures efficiency and accuracy in patient treatment.

Brachytherapy

The ImagingRing's ultra-large gantry bore and soft tissue imaging capabilities make it an ideal solution for brachytherapy workflows. With its flexible patient positioning and high-resolution imaging, clinicians can optimize radiotherapy planning and delivery.

Intraoperative use

The ImagingRing integrates seamlessly into surgical workflows, providing high-quality imaging for cranial, spine, and trauma procedures. Its compact design and navigation integration enhance precision and efficiency in the O.R.

Certified for safety and quality

The ImagingRing holds international certifications, including the CE¹ mark, which shows that it meets the strict safety and quality standards
set by the European Union for medical devices. It has also received FDA 510(k) clearance, confirming it meets the rigorous safety
and effectiveness rules of the United States. These global endorsements show our commitment to providing high quality, safe and
reliable imaging solutions that clinicians and patients worldwide can trust.

Identification number of the notified body responsible for the conformity assessment procedures: 0483

From ImagingRing to Mobile Imaging Robot

Experience the evolution of our ImagingRing in Brainlab Loop-X®,
offering mobile, robotic imaging for surgery.
